Mounting the SIDES Pay payment terminal on the self-ordering terminal (SOT)

Mounting the SIDES Pay payment terminal on the self-ordering terminal (SOT)

What
The SIDES Pay payment terminal is mounted on the Self-Ordering Terminal (SOT) using the supplied screws and aligned to the desired position.

Where
Self-ordering terminal (SOT).


Mounting the SIDES Pay payment terminal on the self-ordering terminal

The SIDES Pay payment terminal is attached to the self-ordering terminal (S22+ in this example) using the designated mounting bracket.





1. Preparing the accessories

A small bag containing the following items is also included:
  1. Two screws.
  2. Two washers.
  3. Two velcro straps that can be used for additional security of the payment terminal.




Overview of the included accessories. The white areas are the protective films on the velcro strips.




2. Attaching the payment terminal to the mounting bracket

The screws can be used to attach the payment terminal to the mounting bracket. The designated screw attachment point is located on the back of the payment terminal.




The elongated slot on the self-ordering terminal is used to attach the payment terminal and also allows it to be adjusted to the desired position.



The included velcro straps can be used for additional stability.

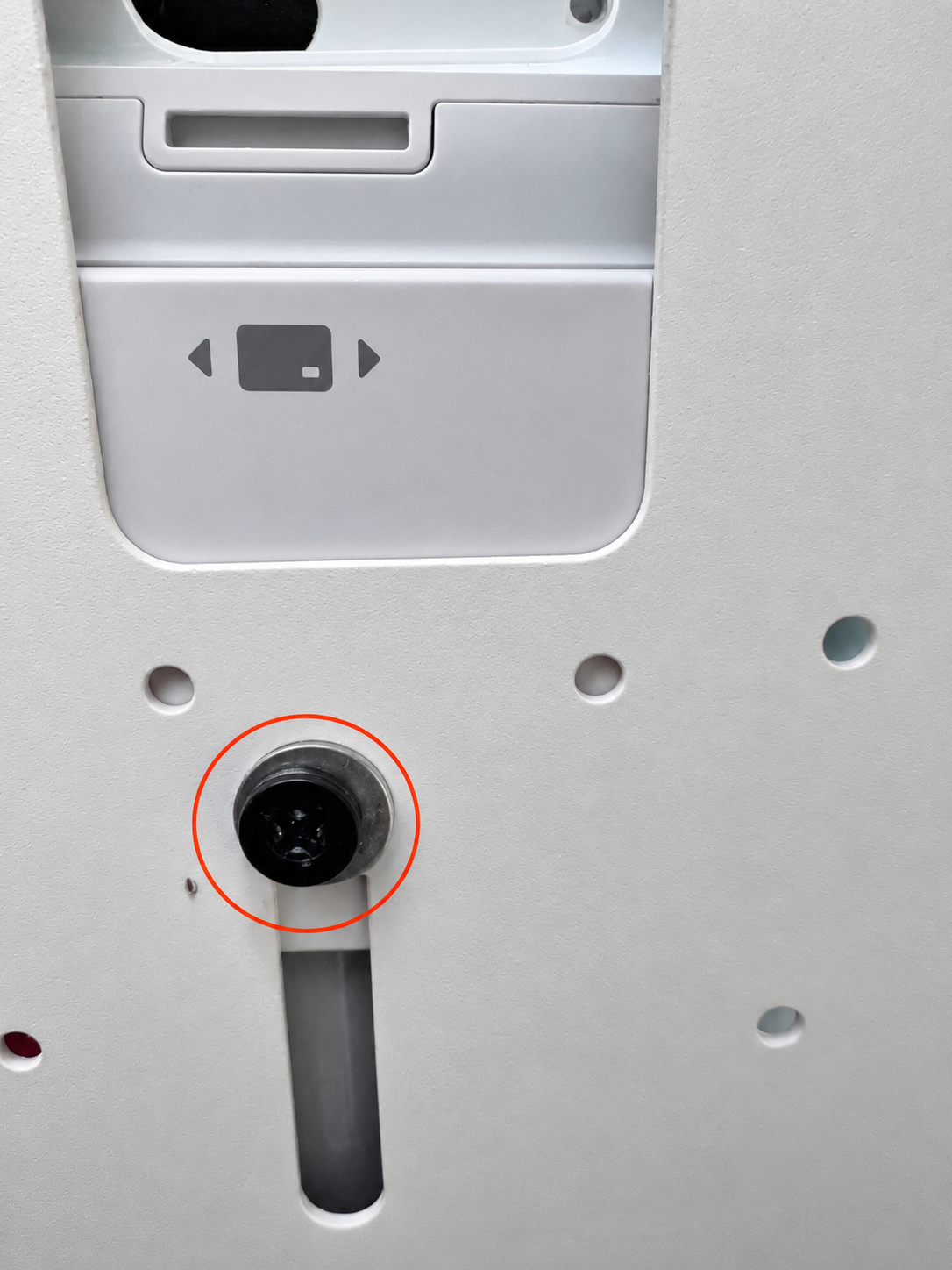

The image shows the rear view of the mounting bracket with the screw fitted.




3. Checking the mounting

After installation, check that the payment terminal is securely attached, stays in the desired position, and that the connection cable is plugged in.
